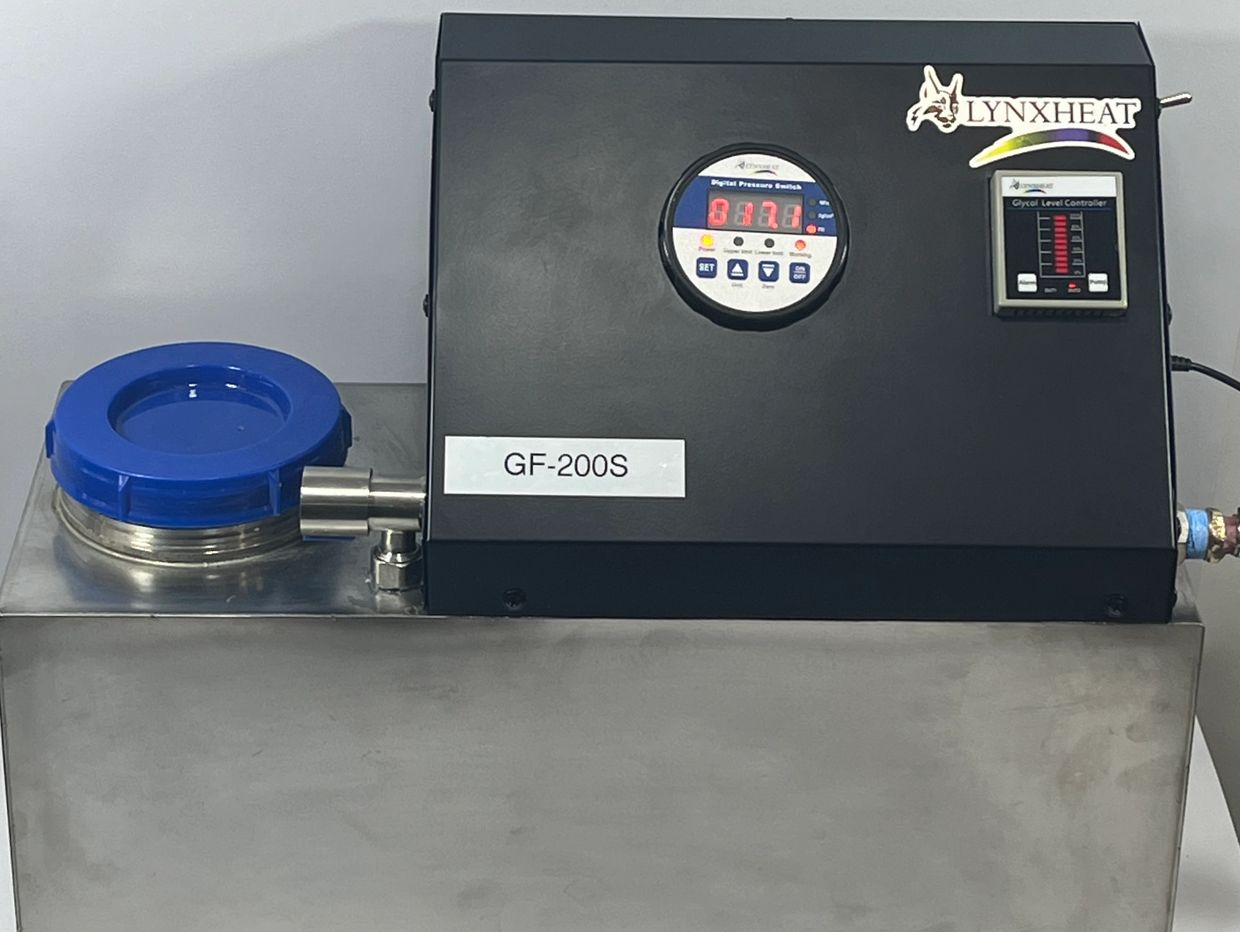

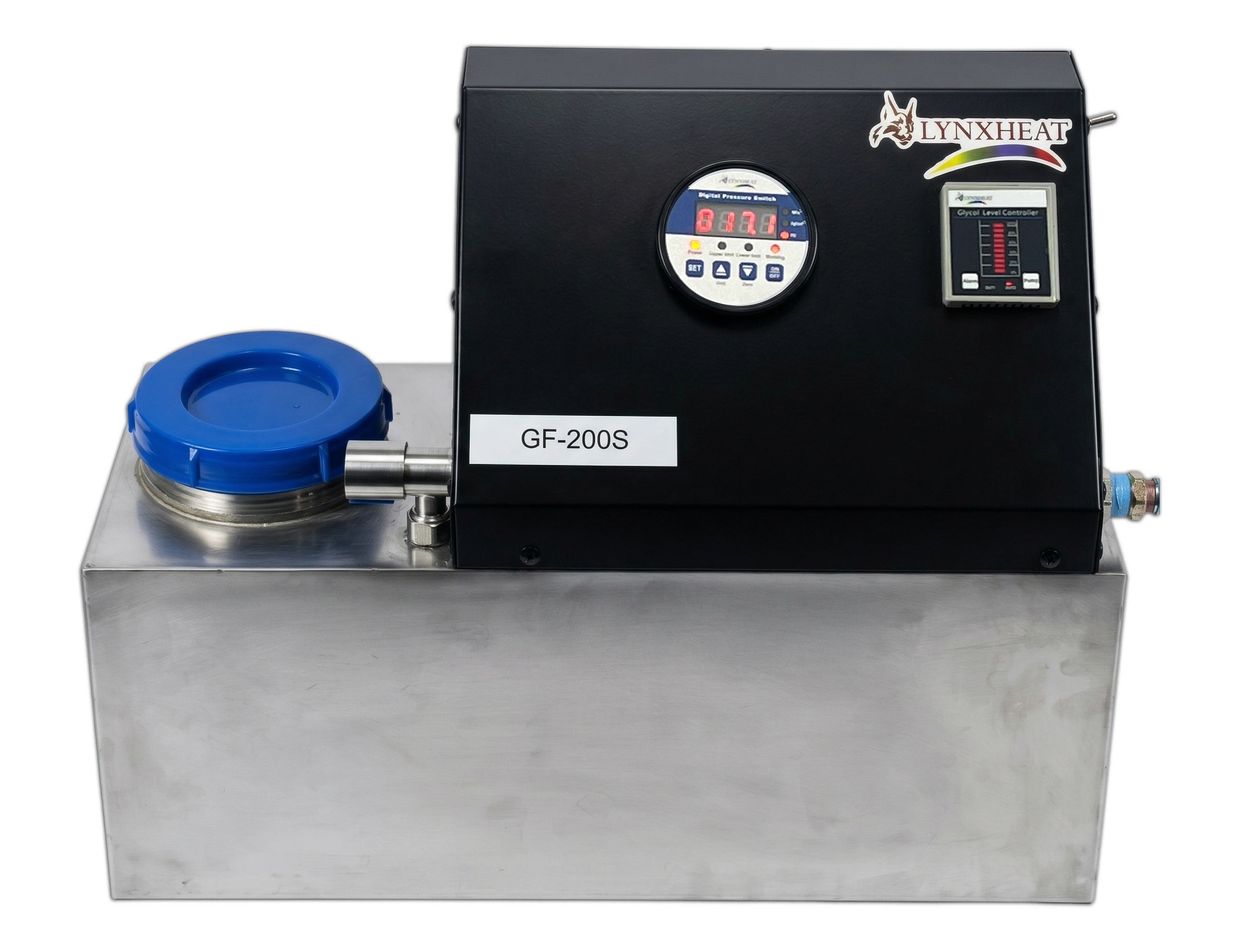

LynxHeat GF-200S
Features
This glycol level controller features a 3" digital LED pressure display, allowing users to select pressure units such as PSI, MPa, and kg/cm².
It has independently adjustable upper and lower pressure limit setpoints, ensuring precision in pressure sensing with an accuracy of ±0.5% or better.
The LynxHeat GF-200S includes lockable upper and lower pressure limit settings to prevent unauthorized or accidental adjustments.
It boasts a storage tank with a capacity of up to 5 gallons, and an integrated check valve that prevents backflow from the system into the storage tank.
This system is recommended for residential glycol systems with a total capacity of 0-50 gallons.
Additionally, it features a built-in manual mixing valve and a self-priming pump.
A two-stage alarm system is included: Stage 1 provides an audible alert via a built-in buzzer, while Stage 2 sends push notifications via a mobile app for high/low fluid level conditions, Wi-Fi disconnection, and power loss events.
The first and second alarm thresholds can be configured independently within the app.
For added convenience, optional email or SMS notifications for fluid level alarm conditions are available as a premium feature.
The low-fluid alarm automatically disables the pump to prevent dry-run damage.
Finally, the ETL-listed power supply is compatible with standard single-phase outlets.
