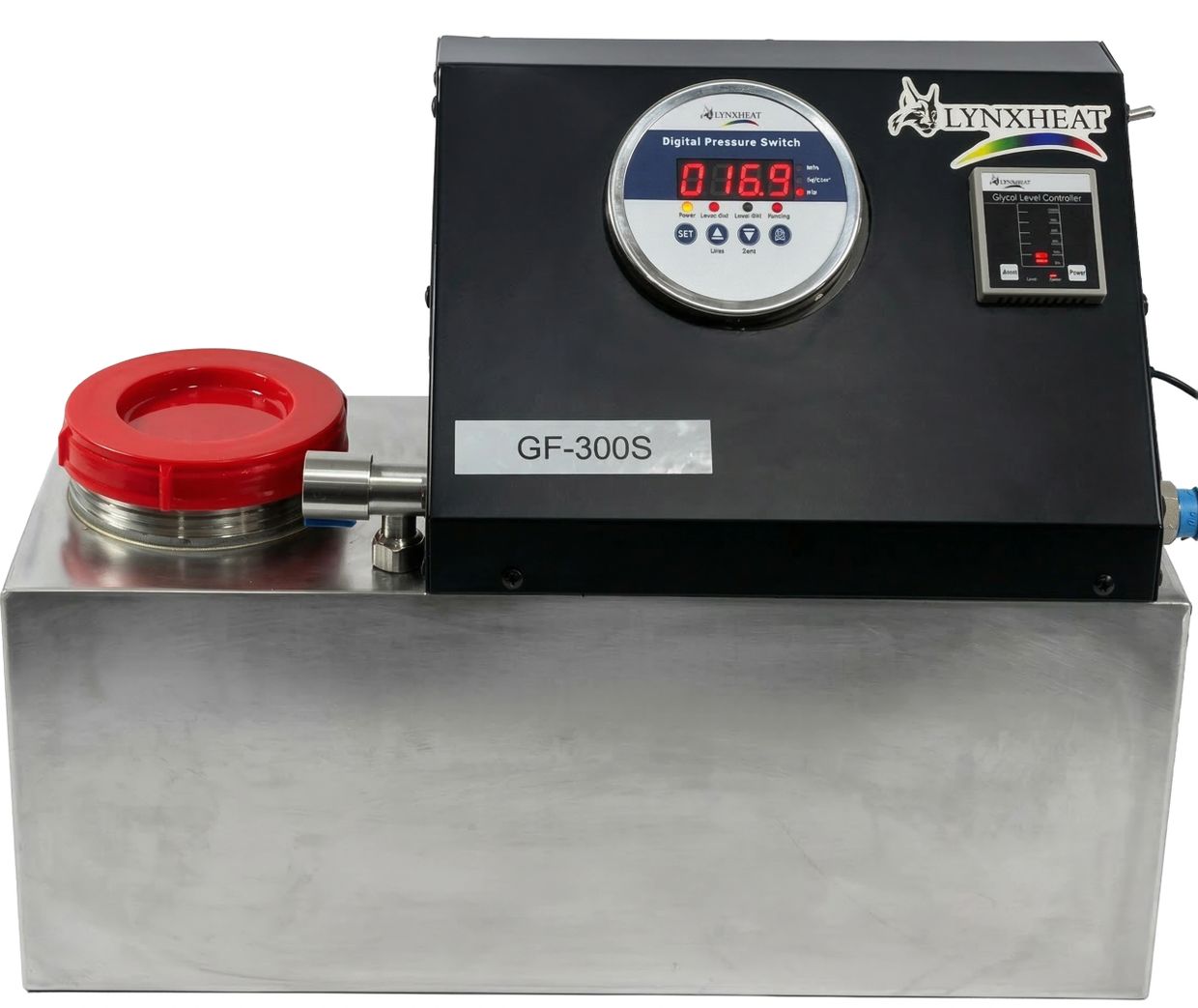

LynxHeat GF-300S
Features
The 4.25" digital pressure display offers selectable pressure units including PSI, MPa, and kg/cm².
This glycol level controller features independently adjustable upper and lower pressure limit setpoints, ensuring precision pressure sensing with an accuracy of ±0.5% or better.
To enhance security, the lockable upper and lower pressure limit settings prevent unauthorized or accidental adjustments.
The integrated storage tank can hold up to 5 gallons, and an integrated check valve prevents backflow from the system into the storage tank.
This system is recommended for large residential and light commercial glycol systems with a total capacity ranging from 0 to 100 gallons.
It includes a built-in manual mixing valve and a self-priming pump for efficient operation.
Additionally, the two-stage alarm system provides an audible alert via a built-in buzzer for Stage 1 and push notifications through a mobile app for high/low fluid level conditions, Wi-Fi disconnections, and power loss events.
The first and second alarm thresholds are independently configurable within the app, with optional email or SMS notifications for fluid level alarm conditions available as a premium feature.
To prevent dry-run damage, the low-fluid alarm automatically disables the pump.
The ETL-listed power supply is compatible with standard single-phase outlets.
